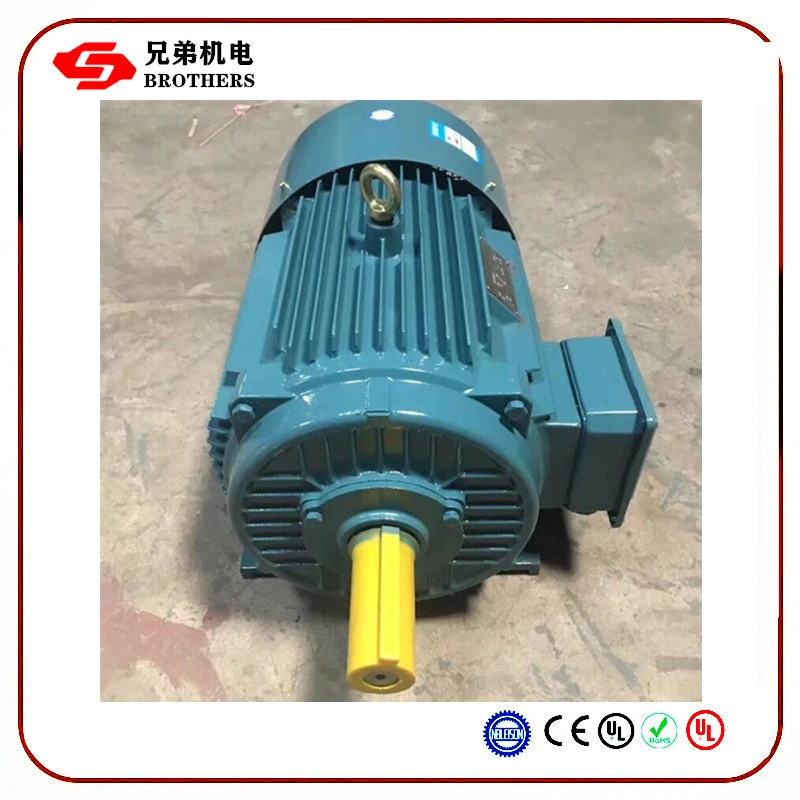

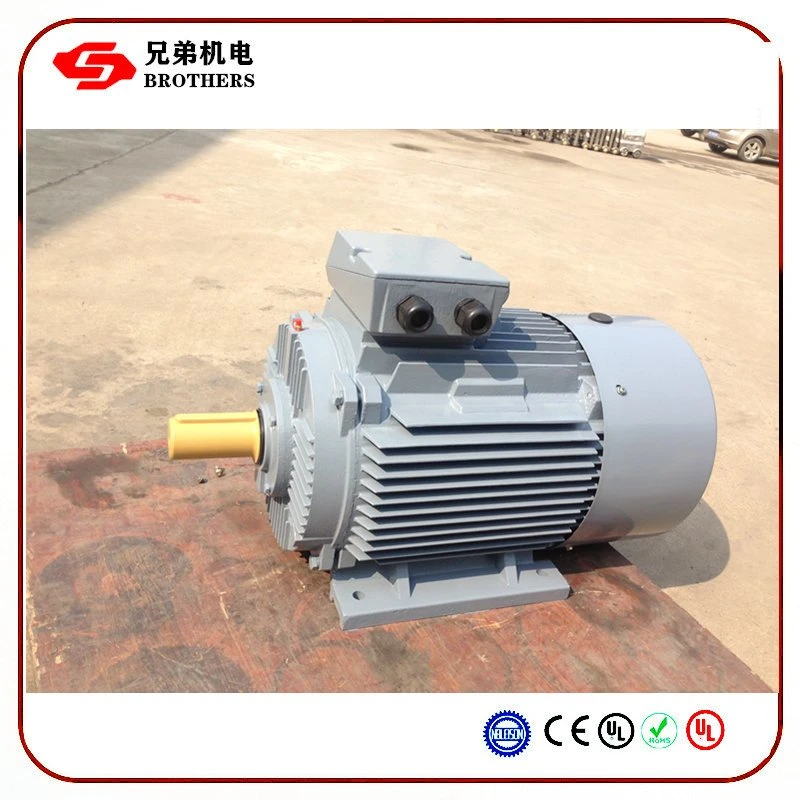

Y2 Motor Features
Electric motor frame from 56 - 355, output range from 0.17HP to 430HP.Motor mounting type B3 (IM 1001), B35 (IM 2001), B5 (IM 3001), B14 (IM 3601), B34 (IM 2101) Protection type IP44, IP54, IP55 on request .Multiple mounting arrangement for optional .Aluminum frame, end shields and base Strong cast iron frame ,High strength cable,Shaft key and protector supplied ,Superior paint finish . steel shaft and stainless steel shaft is optional.Electric motor continuous duty S1,motor have vocuum impregnation for insulation, motor is class F insulation and class H insulation is optional.motor has been make according to ISO9001, CE, UL, CCC, GS request All of our products are make according to GOST, RoHS and IEC standard.High performance and IE1, IE2, IE3 efficiency / IE1 ENERGY SAVEING,IE2 - HIGH EFFICIENCY,IE3 PREMIUM EFFICIENCY.
2.SPECIFICATIONS
1. Silicon steel DR510, 800, 600, 360 standard use stamping of lamination stator and rotor die-casting
2. 100% copper winding and inserting stator (manual and semi-automatically)
3. Stator Vacuum impregnation and drying
4. CNC machining motor shaft, frame, end shields, etc
5. Professional workman inspecting spare parts every processing
6. Electric motor assembly product line
7. Electric motor will 100% test before painting.
8. Electric motor spray-paint on motor painting product line
9. Electric motor will 100% check again before packing.
An electric motor from material to finish motor, must pass 15 time check, and 100% testing, output power, voltage, electric current, non-load, 50% load, 75% load, 100% load and check the nameplate, packing. Finally shipping to our customer.
Technical Data
| TYPE | Output | Current (A) | Speed | Eff. | Power Factor | Ist/In | Tstart/Tn | Tmax/Tn | ||
| KW | HP | 380V | 400V | r/min | % | |||||
| Y2E1-631-2 | 0.18 | 0.25 | 0.53 | 0.50 | 2720 | 65 | 0.8 | 5.5 | 2.2 | 2.2 |
| Y2E1-632-2 | 0.25 | 0.34 | 0.69 | 0.66 | 2720 | 68 | 0.81 | 6.5 | 2.2 | 2.2 |
| Y2E1-711-2 | 0.37 | 0.5 | 0.99 | 0.94 | 2740 | 70 | 0.81 | 7 | 2.2 | 2.2 |
| Y2E1-712-2 | 0.55 | 0.75 | 1.40 | 1.33 | 2740 | 73 | 0.82 | 7 | 2.2 | 2.3 |
| Y2E1-801-2 | 0.75 | 1 | 1.83 | 1.74 | 2830 | 75 | 0.83 | 7.5 | 2.2 | 2.3 |
| Y2E1-802-2 | 1.1 | 1.5 | 2.58 | 2.45 | 2830 | 77 | 0.84 | 7.9 | 2.2 | 2.3 |
| Y2E1-90S-2 | 1.5 | 2 | 3.43 | 3.26 | 2840 | 79 | 0.84 | 7.5 | 2.2 | 2.3 |
| Y2E1-90L-2 | 2.2 | 3 | 4.85 | 4.61 | 2840 | 81 | 0.85 | 7.5 | 2.2 | 2.3 |
| Y2E1-100L-2 | 3 | 4 | 6.31 | 6.00 | 2870 | 83 | 0.87 | 7.5 | 2.2 | 2.3 |
| Y2E1-112M-2 | 4 | 5.5 | 8.12 | 7.72 | 2880 | 85 | 0.88 | 7.5 | 2.2 | 2.3 |
| Y2E1-132S1-2 | 5.5 | 7.5 | 11.04 | 10.49 | 2900 | 86 | 0.88 | 7.5 | 2.2 | 2.3 |
| Y2E1-132S2-2 | 7.5 | 10 | 14.88 | 14.14 | 2900 | 87 | 0.88 | 7.5 | 2 | 2.3 |
| Y2E1-160M1-2 | 11 | 15 | 21.34 | 20.27 | 2940 | 88 | 0.89 | 7.5 | 2 | 2.3 |
| Y2E1-160M2-2 | 15 | 20 | 28.77 | 27.33 | 2940 | 89 | 0.89 | 7.5 | 2 | 2.3 |
| Y2E1-160L-2 | 18.5 | 25 | 34.70 | 32.97 | 2940 | 90 | 0.9 | 7.5 | 2 | 2.3 |
| Y2E1-180M-2 | 22 | 30 | 41.27 | 39.20 | 2940 | 90 | 0.9 | 7.5 | 2 | 2.2 |
| Y2E1-200L1-2 | 30 | 40 | 55.53 | 52.75 | 2950 | 91.2 | 0.9 | 7.5 | 2 | 2.2 |
| Y2E1-200L2-2 | 37 | 50 | 67.89 | 64.50 | 2950 | 92 | 0.9 | 7.5 | 2 | 2.2 |
| Y2E1-225M-2 | 45 | 60 | 82.13 | 78.02 | 2970 | 92.3 | 0.9 | 7.5 | 2 | 2.2 |
| Y2E1-250M-2 | 55 | 75 | 99.84 | 94.85 | 2970 | 92.5 | 0.9 | 7.5 | 2 | 2.2 |
| Y2E1-280S-2 | 75 | 100 | 134.98 | 128.23 | 2970 | 93 | 0.9 | 7.5 | 2 | 2.2 |
| Y2E1-280M-2 | 90 | 125 | 161.63 | 153.55 | 2980 | 93.8 | 0.9 | 7.5 | 2 | 2.2 |
| Y2E1-315S-2 | 110 | 150 | 194.35 | 184.63 | 2980 | 94 | 0.91 | 7.1 | 1.8 | 2.2 |
| Y2E1-315M-2 | 132 | 180 | 232.97 | 221.32 | 2980 | 94.5 | 0.91 | 7.1 | 1.8 | 2.2 |
| Y2E1-315L1-2 | 160 | 220 | 278.73 | 264.79 | 2980 | 94.6 | 0.92 | 7.1 | 1.8 | 2.2 |
| Y2E1-315L2-2 | 200 | 270 | 346.58 | 329.25 | 2980 | 94.8 | 0.92 | 7.1 | 1.8 | 2.2 |
| Y2E1-355M-2 | 250 | 340 | 431.87 | 410.27 | 2980 | 95.3 | 0.92 | 7.1 | 1.6 | 2.2 |
| Y2E1-355L-2 | 315 | 420 | 544.15 | 516.94 | 2980 | 95.6 | 0.92 | 7.1 | 1.6 | 2.2 |
| Y2E1-631-4 | 0.12 | 0.16 | 0.44 | 0.42 | 1310 | 57 | 0.72 | 5.2 | 2.4 | 2.2 |
| Y2E1-632-4 | 0.18 | 0.25 | 0.62 | 0.59 | 1310 | 60 | 0.73 | 5.2 | 2.4 | 2.2 |
| Y2E1-711-4 | 0.25 | 0.34 | 0.79 | 0.75 | 1330 | 65 | 0.74 | 5.2 | 2.4 | 2.2 |
| Y2E1-712-4 | 0.37 | 0.5 | 1.13 | 1.08 | 1330 | 67 | 0.74 | 5.2 | 2.4 | 2.2 |
| Y2E1-801-4 | 0.55 | 0.75 | 1.55 | 1.47 | 1440 | 71 | 0.76 | 5.7 | 2.4 | 2.3 |
| Y2E1-802-4 | 0.75 | 1 | 2.03 | 1.93 | 1440 | 73 | 0.77 | 6 | 2.3 | 2.3 |
| Y2E1-90S-4 | 1.1 | 1.5 | 2.89 | 2.75 | 1400 | 75 | 0.77 | 6 | 2.3 | 2.3 |
| Y2E1-90L-4 | 1.5 | 2 | 3.70 | 3.51 | 1400 | 78 | 0.79 | 6 | 2.3 | 2.3 |
| Y2E1-100L1-4 | 2.2 | 3 | 5.16 | 4.90 | 1430 | 80 | 0.81 | 7 | 2.3 | 2.3 |
| Y2E1-100L2-4 | 3 | 4 | 6.78 | 6.44 | 1430 | 82 | 0.82 | 7 | 2.3 | 2.3 |
| Y2E1-112M-4 | 4 | 5.5 | 8.82 | 8.38 | 1435 | 84 | 0.82 | 7 | 2.3 | 2.3 |
| Y2E1-132S-4 | 5.5 | 7.5 | 11.84 | 11.25 | 1440 | 85 | 0.83 | 7 | 2.3 | 2.3 |
| Y2E1-132M-4 | 7.5 | 10 | 15.59 | 14.81 | 1440 | 87 | 0.84 | 7 | 2.3 | 2.3 |
| Y2E1-160M-4 | 11 | 15 | 22.61 | 21.48 | 1470 | 88 | 0.84 | 7 | 2.2 | 2.3 |
| Y2E1-160L-4 | 15 | 20 | 30.13 | 28.62 | 1470 | 89 | 0.85 | 7 | 2.2 | 2.3 |
| Y2-180M-4 | 18.5 | 25 | 36.11 | 34.31 | 1460 | 90.5 | 0.86 | 7 | 2.2 | 2.3 |
| Y2-180L-4 | 22 | 30 | 42.71 | 40.58 | 1460 | 91 | 0.86 | 7.5 | 2.2 | 2.3 |
| Y2-200L-4 | 30 | 40 | 57.61 | 54.73 | 1470 | 92 | 0.86 | 7.5 | 2.2 | 2.3 |
| Y2-225S-4 | 37 | 50 | 69.85 | 66.36 | 1470 | 92.5 | 0.87 | 7.5 | 2.2 | 2.3 |
| Y2-225M-4 | 45 | 60 | 84.68 | 80.45 | 1470 | 92.8 | 0.87 | 7.5 | 2.2 | 2.3 |
| Y2-250M-4 | 55 | 75 | 103.28 | 98.12 | 1470 | 93 | 0.87 | 7.2 | 2.2 | 2.3 |
| Y2-280S-4 | 75 | 100 | 139.64 | 132.65 | 1480 | 93.8 | 0.87 | 7.2 | 2.2 | 2.3 |
| Y2-280M-4 | 90 | 125 | 166.85 | 158.51 | 1480 | 94.2 | 0.87 | 7.2 | 2.2 | 2.3 |
| Y2-315S-4 | 110 | 150 | 200.97 | 190.92 | 1480 | 94.5 | 0.88 | 7.2 | 2.2 | 2.3 |
| Y2-315M-4 | 132 | 180 | 240.40 | 228.38 | 1485 | 94.8 | 0.88 | 7.2 | 2.1 | 2.3 |
| Y2-315L1-4 | 160 | 220 | 291.09 | 276.54 | 1485 | 94.9 | 0.88 | 6.9 | 2.1 | 2.3 |
| Y2-315L2-4 | 200 | 270 | 359.40 | 341.43 | 1485 | 95 | 0.89 | 6.9 | 2.1 | 2.3 |
| Y2-355M-4 | 250 | 340 | 442.85 | 420.71 | 1490 | 95.3 | 0.9 | 6.9 | 2.1 | 2.2 |
| Y2-355L-4 | 315 | 420 | 556.24 | 528.43 | 1485 | 95.6 | 0.9 | 6.9 | 2.1 | 2.2 |
| Y2E1-711-6 | 0.18 | 0.25 | 0.74 | 0.70 | 850 | 56 | 0.66 | 4 | 1.9 | 2 |
| Y2E1-712-6 | 0.25 | 0.34 | 0.95 | 0.90 | 850 | 59 | 0.68 | 4 | 1.9 | 2 |
| Y2E1-801-6 | 0.37 | 0.5 | 1.30 | 1.23 | 890 | 62 | 0.7 | 4.7 | 1.9 | 2 |
| Y2E1-802-6 | 0.55 | 0.75 | 1.79 | 1.70 | 890 | 65 | 0.72 | 4.7 | 1.9 | 2 |
| Y2E1-90S-6 | 0.75 | 1 | 2.18 | 2.07 | 910 | 72.7 | 0.72 | 5.5 | 2 | 2.1 |
| Y2E1-90L-6 | 1.1 | 1.5 | 3.01 | 2.86 | 910 | 76 | 0.73 | 5.5 | 2 | 2.1 |
| Y2E1-100L-6 | 1.5 | 2 | 3.85 | 3.65 | 940 | 79 | 0.75 | 5.5 | 2 | 2.1 |
| Y2E1-112M-6 | 2.2 | 3 | 5.43 | 5.16 | 940 | 81 | 0.76 | 6.5 | 2 | 2.1 |
| Y2E1-132S-6 | 3 | 4 | 7.31 | 6.95 | 960 | 82 | 0.76 | 6.5 | 2.1 | 2.1 |
| Y2E1-132M1-6 | 4 | 5.5 | 9.52 | 9.04 | 960 | 84 | 0.76 | 6.5 | 2.1 | 2.1 |
| Y2E1-132M2-6 | 5.5 | 7.5 | 12.62 | 11.99 | 960 | 86 | 0.77 | 6.5 | 2.1 | 2.1 |
| Y2E1-160M-6 | 7.5 | 10 | 16.91 | 16.07 | 970 | 87.5 | 0.77 | 6.5 | 2 | 2.1 |
| Y2E1-160L-6 | 11 | 15 | 23.18 | 22.02 | 970 | 89 | 0.81 | 6.5 | 2 | 2.1 |
| Y2E1-180L-6 | 15 | 20 | 31.26 | 29.70 | 980 | 90 | 0.81 | 6.5 | 2.1 | 2 |
| Y2E1-200L1-6 | 18.5 | 25 | 37.63 | 35.75 | 980 | 90 | 0.83 | 6.5 | 2.1 | 2 |
| Y2E1-200L2-6 | 22 | 30 | 43.25 | 41.09 | 980 | 92 | 0.84 | 7 | 2.1 | 2 |
| Y2E1-225M-6 | 30 | 40 | 57.30 | 54.43 | 980 | 92.5 | 0.86 | 7 | 2.1 | 2 |
| Y2E1-250M-6 | 37 | 50 | 70.44 | 66.92 | 980 | 92.8 | 0.86 | 7 | 2 | 2 |
| Y2E1-280S-6 | 45 | 60 | 85.03 | 80.78 | 990 | 93.5 | 0.86 | 7 | 2 | 2 |
| Y2E1-280M-6 | 55 | 75 | 103.59 | 98.41 | 990 | 93.8 | 0.86 | 7 | 2 | 2 |
| Y2E1-315S-6 | 75 | 100 | 139.34 | 132.37 | 990 | 94 | 0.87 | 6.7 | 2 | 2 |
| Y2E1-315M-6 | 90 | 125 | 168.79 | 160.35 | 990 | 94.2 | 0.86 | 6.7 | 2 | 2 |
| Y2E1-315L1-6 | 110 | 150 | 200.97 | 190.92 | 990 | 94.5 | 0.88 | 6.7 | 2 | 2 |
| Y2E1-315L2-6 | 132 | 180 | 240.66 | 228.62 | 990 | 94.7 | 0.88 | 6.7 | 1.9 | 2 |
| Y2E1-355M1-6 | 160 | 220 | 292.01 | 277.41 | 990 | 94.6 | 0.88 | 6.7 | 1.9 | 2 |
| Y2E1-355M2-6 | 200 | 270 | 363.86 | 345.67 | 990 | 94.9 | 0.88 | 6.7 | 1.9 | 2.1 |
